Metal Saws

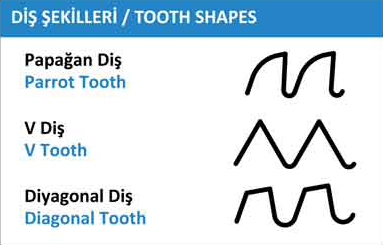

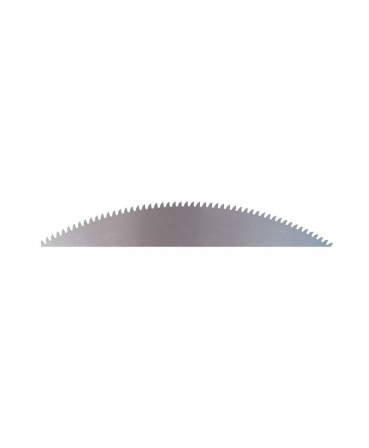

Friction saw blades produced by ASBİLEK are designed for cutting of steel tubes and various sectioned profiles with temperature under 250 C. Diameter range of saw blades is between 250 to 1250mm (9,85"-49,20") and their maximum thickness is 10mm. For each diameter of saw blades , the material is Chromium-Vanadium (80CrV2-DIN 1.2235) steel. Additionally, its Tungsten-Molybdenum (73WCrMoV2-2-DIN 1.2604) steel and chromium alloyed (75Cr1-DIN 1.2003) steel for smaller diameter are used. The body of the saw blades is completely hardened and tempered to obtain a hardness of 45(2)HRC and generally, ground tapered. Tooth types and cutting angles are manufactured according to the type of the saw machine, the shape and the hardness of the material to be cut. After a period of time, the tips of blades are just sharpened. The cutting operation is carried out in a dry manner. Application of greasing after the cutting operation extends the service life of saw blades. The ideal peripheral speed should be between 100-140m/sec.
